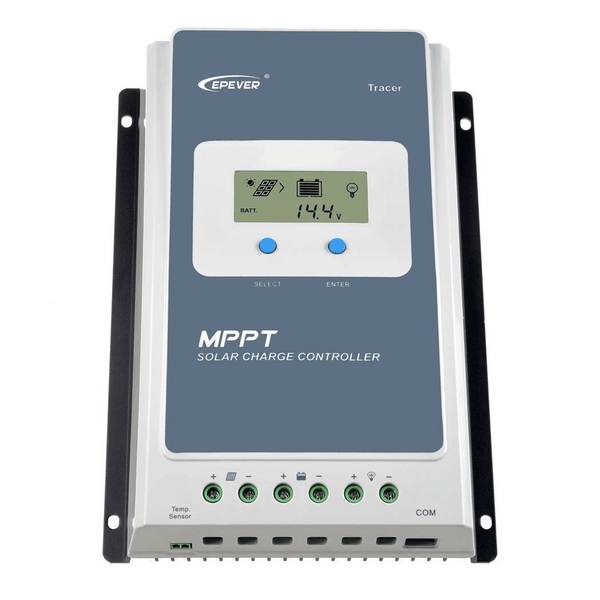

SolarEpic MPPT Solar Charge Controller 100V PV Input Trace AN Series (10A/20A/30A/40A)

User's Manual

Epever MPPT Solar Charge Controller Battery Charger Regulator Tracer AN Series Max Input 100V

 Features：

• Advanced MPPT technology, with efficiency no less than 99.5%
• Ultra-fast tracking speed and guaranteed tracking efficiency
• Advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time
• Wide MPP operating voltage range
• High quality components, perfecting system performance, with maximum conversion efficiency of 98%
• Accurate recognition and tracking of multiple-peaks maximum power point
• International famous brands of ST and IR's components of high quality and low failure rate are used, which can ensure the product’s service life
• Charging power and current limitation function
• Compatible with lead-acid and lithium-ion batteries
• Battery temperature compensation function
• Real-time energy statistics function
• Overheating power reduction function
• Multiple load work modes
• The communication port adopts professional protection chip, which can provide 5VDC power supply, and has over-current and short-circuit protection.
• With RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements in different situations.
• Monitor and set the parameters via mobile phone APP or PC software
• Full-load operation without any drop in capacity within the range of working environment temperature
• Extensive electronic protection

Electrical Parameters&nbsp

①When a lead-acid battery is used, the controller hasn’t the low temperature protection.

②At minimum operating environment temperature

③At 25℃ environment temperature

④When a lithium-ion battery is used, the system voltage can’t be identified automatically.

Mechanical Parameters
