User's Manual

Product Description

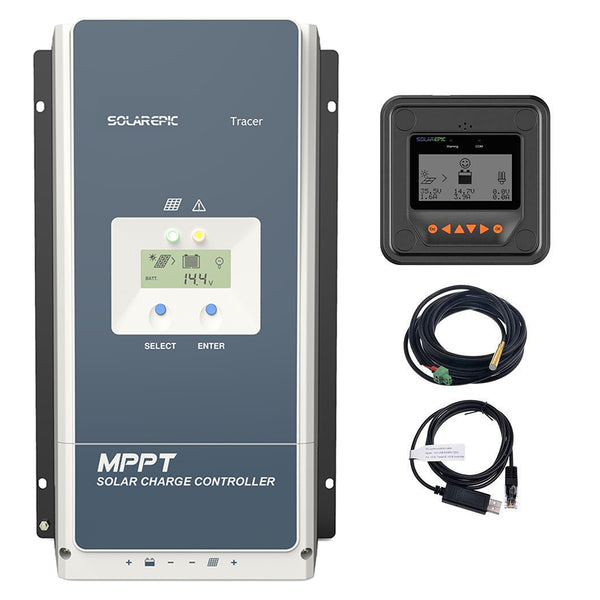

MPPT Solar Charge Controller 100A EPEVER Tracer 10420AN

Based on common negative design and advanced MPPT control algorithm

MPPT Charge efficiency > 99%

Technical Data: Nominal system voltage:12/24/36/48VDC auto work

Rated charge current :100A

Battery input voltage range: 8-68V

Max. PV open circuit voltage:200V(at minimum operating environment temperature) 180V(at 25℃ environment temperature)

MPP voltage range:V(BAT)+2V~144V

Max. PV input power: 1250W/12V battery, 2500W/24V battery , 3750W/36V battery, 5000W/48V battery system

Max Wire Size: #2 AWG(35mm2)

Recommended Wire Size: #2 AWG(35mm2)

Weight: 7.4kg

MT50 Remote Meter

This unit is compatible with Tracer A(N) , TRIRON N, Tracer BN, VSxxxxBN series controllers ONLY from EPsolar. And it's NOT compatible with RN series MPPT charge controller. Description MT-50, a new-generation remote display for EPEVER MPPT controllers is an associated display device which supports both the latest communication protocol and the voltage technology standard of mppt solar controllers.

Technical Data Faceplate dimension:98×98 mm / 3.86×3.86 inch Frame dimension:114×114 mm / 4.49×4.49 inch Connector type: RJ45 Meter cable:Standard 2m,Max 50m Ambient Temperature: -20°C -- +70°C/-4°F -- 158°F

80A MPPT Solar Charge Controller Tracer8420AN


EPEVER Tracer AN series mppt solar charge controller (100A)

Based on multiphase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core processor architecture and common negative design, has the features of high response speed, high reliability, and high industrial standard.

MSRT can give a very high conversion efficiency in any charge power, which sharply improves the energy efficiency of solar system;

Advanced MPPT control algorithm minimize the maximum power point loss rate and loss time, to ensure the tracking efficiency, corresponding speed as well as high conversion efficiency under high or low power, so that in any situation, Tracer AN products can rapidly track the maximum power point(MPP) of PV array to obtain the maximum energy of the panel.

The limitation function of the charging power and current, and automatic power reduction function fully ensure the stability when works with oversize PV modules and operate under high temperature environment.




 Latest product information(For more product video please click here
