Description
  • 100V PV Input & Compatiby with 12/24V Battery System
  • Support 4 charging options: Sealed, Gel, Flooded and User.
  • Wide MPP operating voltage range
  • Maximum DC/DC transfer efficiency as high as 98.7%
  • 100% Genuine MPPT

Product Description

Main Feature:

1. 12v/24v battery system compatibility.

2. Works with lead-acid batteries, lithium batteries.

3. Compatible with more units connected in parallel.

4. PV activation enabled to allow charging the battery even when the battery got protected due to LVD.

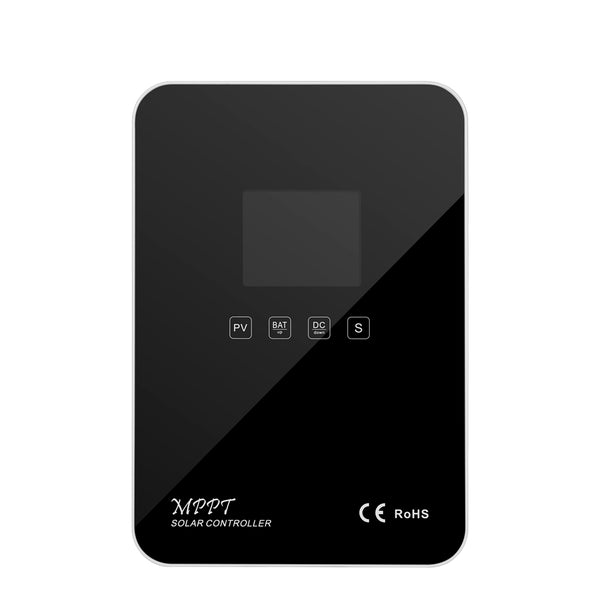

SolarEpic 60A MPPT Solar Charge Controller EM2460 100V PV

40A MPPT Solar Charge Controller
Technical Data
Battery System 12V/24V
Max Charging Current 60A
Max Discharging/Load Current 30A
Max PV Input 100V (Open Circuit Voltage)
Max Solar Panel Power 780W(12v battery system)/ 1560W (24V battery system)
Charging Stage 3
Battery Type Sealed, Gel, Flooded and Lithium (LifePo4)
Max Wire Size #3 gauge
Recommended wire size #8 gauge
SolarEpic MPPT Charge Controller Wiring Diagram
