User's Manual

---

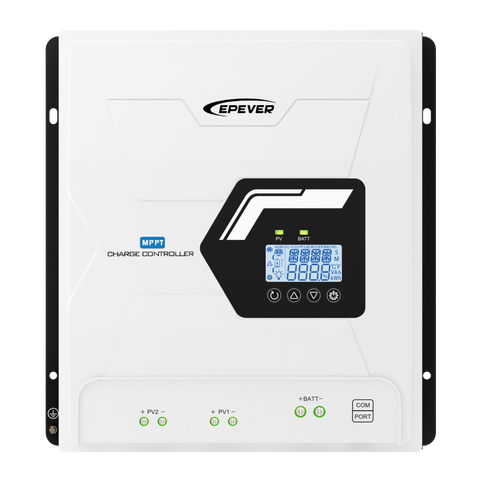

Product Description

Something you should know for Lithium Batteries Charging



1. When a lithium-ion battery is used, the system voltage cannot be identified automatically, please confirm the battery system voltage before installation.
2. When you choose lithium battery as a battery type, the temperature compensate coefficient would be 0, and cannot be changed.
3. This MPPT solar charge controller can work under full load in the ambient temperature range. when the internal temperature reach 81℃, the power reduction mode will be turned on.
4. Lithium battery type can ONLY be set on a cellphone app or "solar station monitor" PC software.





Schematic Diagram





Warm tips：

Step: Connect the system in the order of 1.battery-->2. load-->3.PV array, and disconnect the system in the reverse order 3. 2. 1.

• NEVER connect the soalr panel array to the controller Without/Before a Battery.
• Battery must be connected FIRST !!!
• DO NOT connect any inverter/ wind/Alternator or Charger into the charge controller!
• If the remote temperature sensor is not connected to the controller,, the default setting for battery charging or discharging temperature is 25 °C without temperature compensation.
• The wire size is only for reference. If there is a long distance between the PV array and the controller or between the controller and the battery, larger wires can be used to reduce the voltage drop and improve performance.



How to program for Lithium Battery？

1. Via PC (Accessories needed：RS485),
2. Via phone APP (Accessories needed：Ebox-Wifi or Ebox-Blue)
Software download website: EPever official website or look for in the manual



   VIDEO DEMO

 Latest product information（For more product video please click here）



User's Manual

---

Product Description

   VIDEO DEMO

 Latest product information（For more product video please click here）





DuoRacer Series ——MPPT Dual Battery Solar Charge Controller

DuoRacer MPPT charge controller is made for charging two batteries (shown as BATT1 and BATT2 below) at the same time in a solar system. This controller supports multiple life battery (BATT1) types, including Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn, which is suitable for RV, Camper, Boat, and so on. The device recognizes the start battery (BATT2) system voltage automatically, and trickle charges the battery when the conditions are satisfied.

The controller adopts the advanced MPPT control algorithm,which will minimize the maximum power point loss rate and loss time,also fast track the maximum power point(MPP) of the PV array, and obtain the maximum energy from solar array under any conditions. The energy utilization in the MPPT solar system is increased by 20-30% compared with PWM charging method. When there is no manual operation for a long time, and the charging conditions cannot be reached, the controller will turn to low-power mode, which reduces the loss and battery power waste to enhance the products life. The system parameters are shown and set by LED/LCD or the MT11 remote meter (Accessory).

The AES control signal of the car refrigerator is built in the controller, which will supply the surplus solar power to the refrigerator to avoid energy waste. The controller comes with IP33 protection level, which is waterproof and dustproof. Multiple protection features, including battery overcharge protection, over discharge protection, and reverse connection protection of the PV and battery, which effectively ensure the solar system safety, stability, and lifetime.





Features

· Maximum Power Point Tracking technology with ultra-fast tracking speed and the  tracking efficiency is no less than 99.5% guaranteed

· Advanced MPPT control algorithm to minimize the MPPlost rate and lost time

· The wider range of the MPP operation voltage to improve the PV module
   utilization

· Auto control function of charging power & charging current limitation(BATT1)

· High quality and low failure rate components of ST, TI and Infineon to ensure      the    product life

· Digital circuit control of adaptive three-stage charging mode to enhance BATT1
   life.

· BATT1 type can be set via LED/LCD.

· Product runs into the low-power mode when there is no manual operation for a
  long time, and charging conditions are not satisfied (PV<5V).
· 100% charging and discharging in operationenvironmental temperature range.

· LED and LCD dispiay units selectable.

· AES control signal for car refrigerator to avoid energy waste.

· Standard Modbus protocol, and RS485 (5V/200mA) communication port for  the  customer to expand the application area.





Technical specifications

Item	DR1206N-DDB      DR1206N-DDS	DR2210N-DDB DR2210N-DDS	DR3210N-DDB DR3210N-DDS
BATT1 rated voltage	12/24VDC
Rated Charge Current	10A	20A	30A
Battery Input Voltage Range	8.5～32V
Max. PV Open Circuit Voltage	60V(At min. operating environment temp.) 46V(At 25℃ environment temp.)	100V(At min. operating environment temp.) 92V(At 25℃ environment temp.)
MPP Voltage Range	(Battery Voltage+2V)～36V	(Battery Voltage+2V)～72V
Rated Charge Power	130W/12V 260W/24V	260W/12V 520W/24V	390W/12V 780W/24V
Max. conversion efficiency	97.40%	97.50%	98%
Full load efficiency	97%	96%	96%
Self-consumption	12mA/12V;8mA/24V 4mA/12V;3mA/24V(Low-power mode)	26mA/12V;15mA/24V 19mA/12V;10mA/24V(Low-power mode)
Temperature compensate coefficient①	－3mV/℃/2V(default)
Grounding	Common negative
Common negative	13.8V/12V;27.6V/24V(default)
BATT2 Charge return voltage	13V/12V;26V/24V(defaul
AES signal port ②	5VDC/Max.200mA(3.81-4P)
RS485 com. port ②
Com. baud rate③	115200(default)
LCD backlight time④	60S(default)

 Mechanical Parameters



Item	DR1206N-DDB DR1206N-DDS	DR2210N-DDB DR2210N-DDS	DR3210N-DDB DR3210N-DDS
Dimension	227.2×143×58.1mm	243.7×158×63mm	247.2×165×68.5mm
Mounting dimension	160×134mm	180×149mm	180×156mm
Mounting hole size	φ5mm
Terminal	12AWG/4mm2 (BATT1) 12AWG/4mm²(BATT2)	6AWG/16mm2 (BATT1) 12AWG/4mm²(BATT2)
Recommended cable size	12AWG/4mm²(BATT1) 12AWG/4mm²(BATT2)	10AWG/6mm²(BATT1) 12AWG/4mm²(BATT2)	8AWG/6mm²(BATT1) 12AWG/4mm²(BATT2)
Weight	0.8kg	1.1kg	1.4kg



 Environmental Parameters



Item	DR1206/2210N-DDB DR1206/2210N-DDS	DR3210N-DDB   DR3210N-DDS
Working environment temperature(100% input and output)	﹣20℃～+50℃(DDS) ﹣30℃～+50℃(DDB	﹣20℃～+45℃(DDS) ﹣30℃～+45℃(DDB)
Storage temperature range	-30℃～+80℃
Relative humidity	≤95%, N.C
Enclosure	IP33 3-protection against solid objects: protected against solids objects over 2.5mm. 3-protected against sprays to 60°from the vertical.
Pollution degree	PD2



①The Temperature compensate coefficient is zero and not changeable when the life battery type is lithium battery。

②If the AES signal port and RS485 communication port are used in the same time, the toal current is no greater than 200mA.

③The communication baud rate can only be set via PC software.

④The LCD backing time can only be set via PC software, setting range is 0~999S and the 0s means the LCD is on all the time. DDB:DuoRacer Display Basic (LED) DDS:DuoRacer Display Standard (LCD)



 VIDEO DEMO

For more product video please click here

Feature:

Compatible with PC software & MT50 for real-time monitoring
Connect to PC via USB interfaces with high compatibility
Powered up by controller communication interface
Record capacity: 20000 points(MAX)
LED Indicator design, more intuitive display

technical parameter

Model	eLOG01
Input voltage	4～10VDC Powered up by RS485 interface
Average power consumption	0.3W
Baud rate	115200
Communication	RS485
Interface type	2 RJ45 1 Micro USB
Record time	10 minutes
Dimensions	71×67.62×25.8mm
Mounting dimension	57.6mm
Mounting hole size	Φ4.5
Working temperature	-25℃～75℃
Humidity	5-95% (N.C.)
Enclosure	IP30
Net weight	42g
Warranty	2 years



IPower series is a pure sine wave inverter which can convert 12/24/48Vdc into 110V/220Vac. It has the characteristics of concise outline, compact size, high reliability, high efficiency, easy to install and operate and so on. The inverter applicable to household emergency lighting system, vehicle mounted system and small field power supply, etc.

Feature:

• Safe design with input and output electrical isolation
• Adoption of advanced SPWM technology, pure sine wave output
• Optional output voltage220/230VAC (or 110/120VAC ), setted by DIP switch
• Output frequency 50/60Hz, setted by DIP switch
• LED indicators for working and fault status
• Lower No-load consumption
• Max. efficiency up to 95%
• Input protection: Over voltage protection, low voltage protection
• Output protection: Over load protection, short circuit protection
• Over temperature protection: Temperature-controlled Fan Ventilation; Inverter turns off automatically
• Industrial grade design

Technical specifications（350W/500W）:

Model	350-11	500-11	350-21	500-21	350-12	500-12	350-22	500-22
Item
Input Rated Voltage	12VDC		24VDC		12VDC		24VDC
Input Voltage Range	10.8～16VDC		21.6～32VDC		10.8～16VDC		21.6～32VDC
Input surge voltage	<32V		<44V		<32V		<44V
Fuse	32VDC/50A	2*32VDC/35A	32VDC/30A	2*32VDC/25A	32VDC/50A	2*32VDC/35A	32VDC/30A	2*32VDC/25A
No-load current	<0.7A	<0.9A	<0.5A	<0.5A	<0.7A	<0.9A	<0.5A	<0.5A
Output Voltage	110VAC(±5%)				220VAC(±5%)
	120VAC(-10%～+5%)				230VAC(-10%～+5%)
Output Continuous Power(-20℃～+45℃)	350VA	500VA	350VA	500VA	350VA	500VA	350VA	500VA
Power factor	0.8				0.8
Instantaneous impact power	≥750VA	≥1000VA	≥750VA	≥1000VA	≥750VA	≥1000VA	≥750VA	≥1000VA
Output way	Single phase				Single phase
Output Wave	Pure sine wave				Pure sine wave
Output Frequency	50/60Hz（±0.2%）				50/60Hz（±0.2%）
Distortion THD	THD≤5%(Resistive load)				THD≤5%(Resistive load)
Max. Efficiency	91%				92%
	90%(IP350-11)				91%(IP350-12)
Max. USB Output	5VDC/1A				5VDC/1A



Model	350-11 350-12	350-21 350-22	500-11 500-12	500-21 500-22
DC input terminal	6mm2
Overall dimension	214×105.5×57.7mm		232.2×132×74.5mm
Mounting dimension	185.5×76.7mm		205×102mm
Mounting hole size	Φ4.2mm		Φ5.2mm
Net weight	0.9kg		1.4kg

Working environment temperature	-20℃～+45℃
Storage temperature range	-35℃～+70℃
Humidity range	≤93%（N.C.）
Enclosure	IP20
Altitude	<2000m
	(Derating to operate according to IEC62040 at a height exceeding 1000 m)

Technical specifications(1500W/2000W):

Model	1500-11	1500-21	2000-21	2000-41	1500-12	1500-22	2000-22	2000-42
Item
Input Rated Voltage	12VDC	24VDC	24VDC	48VDC	12VDC	24VDC	24VDC	48VDC
Input Voltage Range	10.8～16VDC	21.6～32VDC	21.6～32VDC	43.2～60VDC	10.8～16VDC	21.6～32VDC	21.6～32VDC	43.2～60VDC
Input surge voltage	＜20VDC	＜40VDC	＜40VDC	＜80VDC	＜20VDC	＜40VDC	＜40VDC	＜80VDC
No-load current	＜1.0A	＜0.6A	＜0.6A	＜0.4A	＜1.0A	＜0.6A	＜0.6A	＜0.4A
Output Voltage	110VAC(±5%)		110VAC(±5%)		220VAC(±5%)		220VAC(±5%)
	120VAC(-7%～+5%)		120VAC(-10%～+5%)		230VAC(-7%～+5%)		230VAC(-10%～+5%)
Output Continuous Power	1200W		1600W		1200W		1600W
Output Power 15 min.	1500W		2000W		1500W		2000W
Instantaneous impact power	2400W		3200W		2400W		3200W
Output way	Single phase		Single phase		Single phase		Single phase
Output Wave	Pure sine wave		Pure sine wave		Pure sine wave		Pure sine wave
Output Frequency	50/60Hz（±0.2%）		50/60Hz(±0.2%)		50/60Hz（±0.2%）		50/60Hz(±0.2%)
Distortion THD	THD≤5%(Resistive load)		THD≤5%(Resistive load)		THD≤5%(Resistive load)		THD≤5%(Resistive load)
Max. Efficiency	93%	94%	95%		93%	94%	95%
Max. USB Output	5VDC/1A		5VDC/1A		5VDC/1A		5VDC/1A
Binding post	Φ10mm		Φ10mm		Φ10mm		Φ10mm



Model	1500-11 1500-12	1500-21 1500-22	2000-21 2000-22	2000-41 2000-42
Item
Overall dimension	326.12×231.5×98.5mm	284.7×231.5×98.5mm	326.12×231.5×98.5mm
Mounting dimension	208×220mm	163×220mm	208×219.5mm
Mounting hole size	Φ5.5mm		Φ5.5mm
Net weight	3.9kg		4.0kg



Working Temperature	-20℃~+45℃
Storage Temperature	-35℃~ +70℃
Humidity	< 95%(N.C.)
Enclosure	IP20
Altitude	< 5000 m (Derating to operate according to IEC62040 at a height exceeding 1000 m)

User's Manual





Product Description



   VIDEO DEMO

 Latest product information（For more product video please click here）



PS : this item only can be use for epever brand item,can't be use for others.

   VIDEO DEMO



Applicable Models Product series Communication Interface type LS-B series RS485 RJ45 VS-A series VS-BN series Tracer-A series Tracer-BN series SHI series STI series eTracer-AD series 3.81-4P eTracer-BND series iTracer-ND series

WiFi Adapter

EPEVER WiFi 2.4G RJ45 D

Overview:

Through a local 2.4G WiFi network, the EPEVER WiFi 2.4G RJ45 D can transmit all operational data from the EPEVER solar controller, inverter, or inverter/charger to the EPEVER cloud server in real time. Users can remotely monitor the connected devices and program parameters via the EPEVER server platform and mobile APP.

Features:

Ÿ  Applicable to EPEVER controllers, inverters, or inverter/charger with RJ45 port

Ÿ Use immediately after connecting; easy and convenient operation

Ÿ Directly powered by the communication port

Ÿ Up to 20 meters of communication distance

Ÿ Support the Local monitoring and "EPEVER Cloud" working mode.

Specifications：

Model Parameter	EPEVER WiFi   2.4G RJ45 D
Working voltage	5V± 0.5V(Powered by RS485 com. port)
Power consumption	Peak emission: 150mA;    Idle: 310uA
Enclosure	IP30
Communication method	RS485
Communication parameters	115200Bps, 8N1
Interface standard	EPEVER communication standard V1-1.0
Work frequency	2.4 ~ 2.4835GHz
Work temperature range	-40℃~ 85℃
Dimension	63mm x 19mm x 10mm
Net weight	7.7g

EPEVER BLE RJ45 A : Bluetooth
Epever BLE RJ45 A is a new Bluetooth adapter suitable for EPEVER solar controller,inverter, and inverter/charger. Adopting the Bluetooth 5.0 transmission and BLE(Bluetooth Low Energy) technology, Eepver BLE RJ45 A enables data collection,communication, and wireless monitoring of connected devices.
Features: Support communication by APP Support data encryption Use immediately after connecting, easy and convenient operation Feature fast communication and strong anti interference ability D irectly powered by t h e communication port Up to 3 0 meters comm unication distance

Technical Specifications
Models	EPEVER BLE RJ45 A
Input Voltage	5V± 0.5V(Powered by RS485 com. port)
Power consumption	5V@30mA
Communication	≤10m
Serial port baud rate	2400 ~ 115200bps (default 115200bps）
Communication	RS485 to Bluetooth
Interface type	RJ45
Connecting cable	Standard network cable (parallel line)
Bluetooth protocol	Bluetooth 5.0, compatible with Bluetooth 4.0
Overall dimension	51*67*24.5mm
Mounting dimension	41.2
Mounting hole size	Φ3.2
Working temperature	-20~70℃
Enclosure	IP30
Net weight	38g



APK Download：Epever（WIFI&BLE）

Feature：
