About this item

• 1. Advanced 100A MPPT Charging with Exceptional Efficiency Maximize solar energy harvest with our 100A MPPT Solar Charge Controller, featuring industry-leading MPPT tracking efficiency ≥99.5% and peak conversion efficiency up to 98.5%. This ensures maximum power point tracking in various conditions, capturing more energy from your solar panels to deliver optimal charging power to your battery system efficiently.

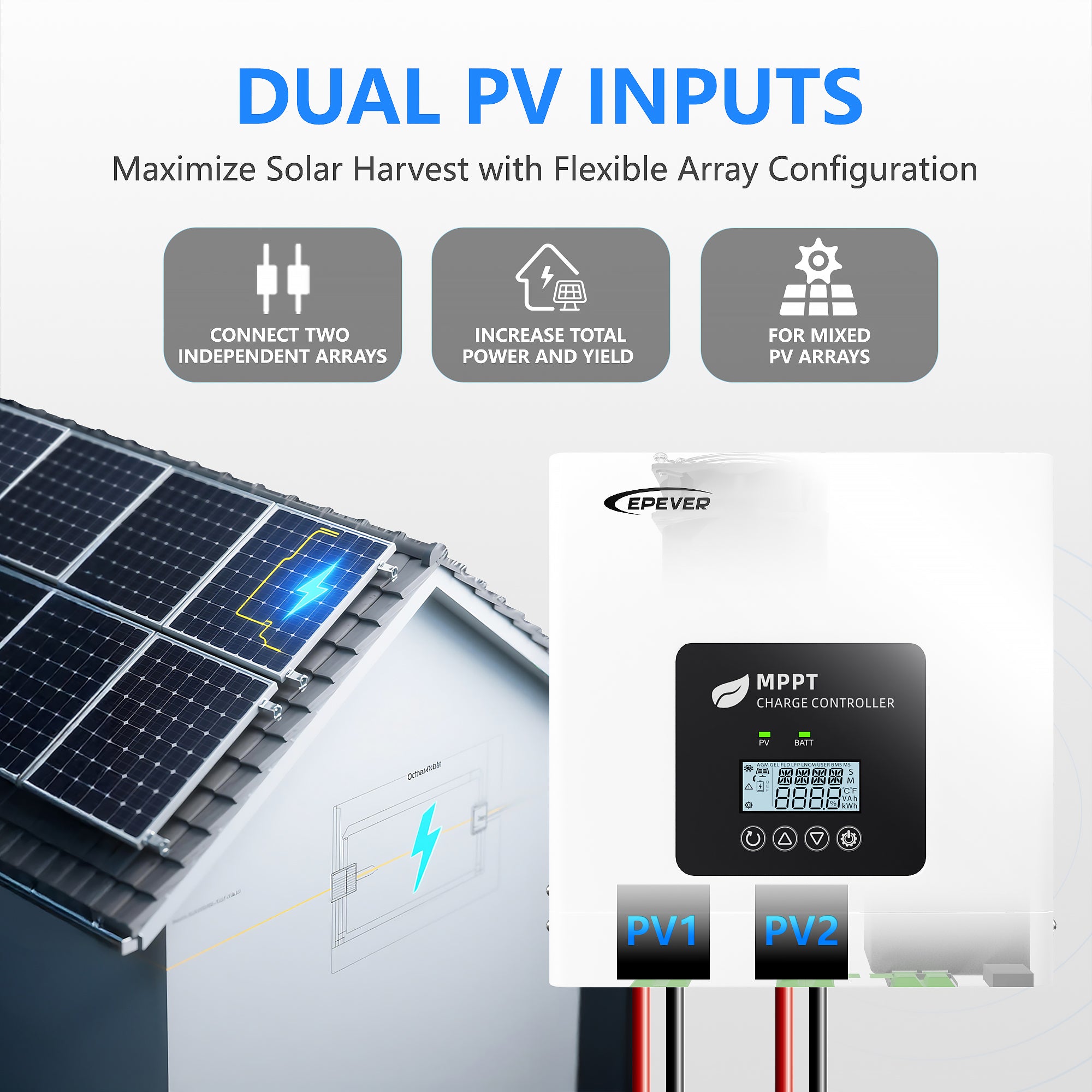

• 2. Dual PV Inputs & High System Flexibility The TEP10415 100A MPPT controller supports two independent PV inputs, allowing connection of solar arrays with different specifications or orientations. This dual-input design increases PV utilization and system flexibility. With a max PV open-circuit voltage of 150V, it accommodates more panels in series, making it ideal for medium to large-scale solar systems.

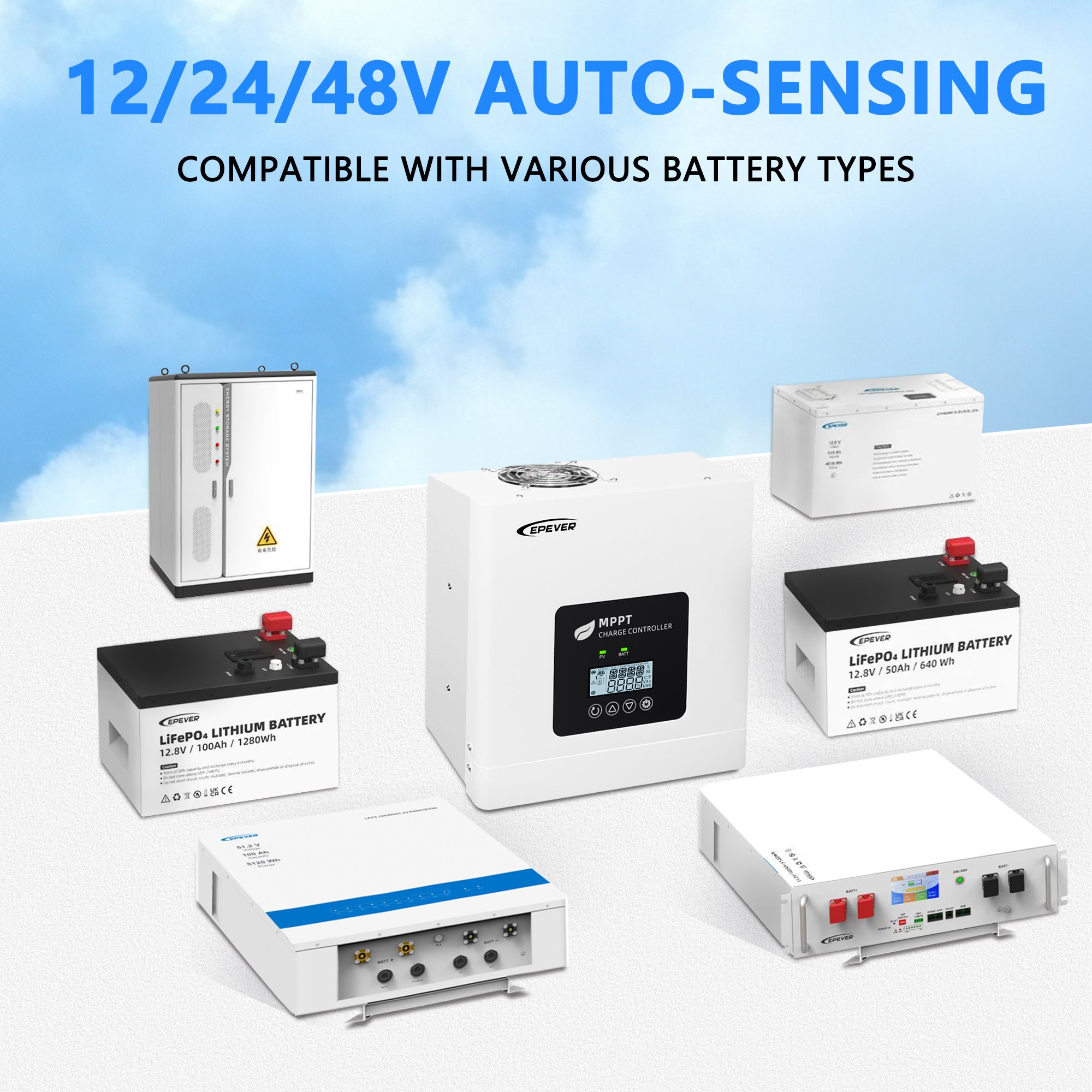

• 3. Wide Battery Compatibility & No-Battery Mode Operation This 100A MPPT Solar Charge Controller is compatible with various battery types, including AGM, Gel, Flooded, and Lithium (LiFePO4, NCM). It features a unique no-battery mode, enabling the system to power loads directly from sufficient PV energy without a battery, enhancing system versatility and reliability for applications like industrial monitoring.
• 4. Parallel Capability & Intelligent Battery Management Scale your system power effortlessly. The TEP10415 controller supports parallel operation of up to 6 units (with or without a battery) for expanded capacity. It includes a built-in BMS communication port for direct communication with EPEVER or Pylontech batteries (other brands require a BMS-Link module), enabling precise, BMS-controlled charging and discharging for superior battery protection and lifespan.

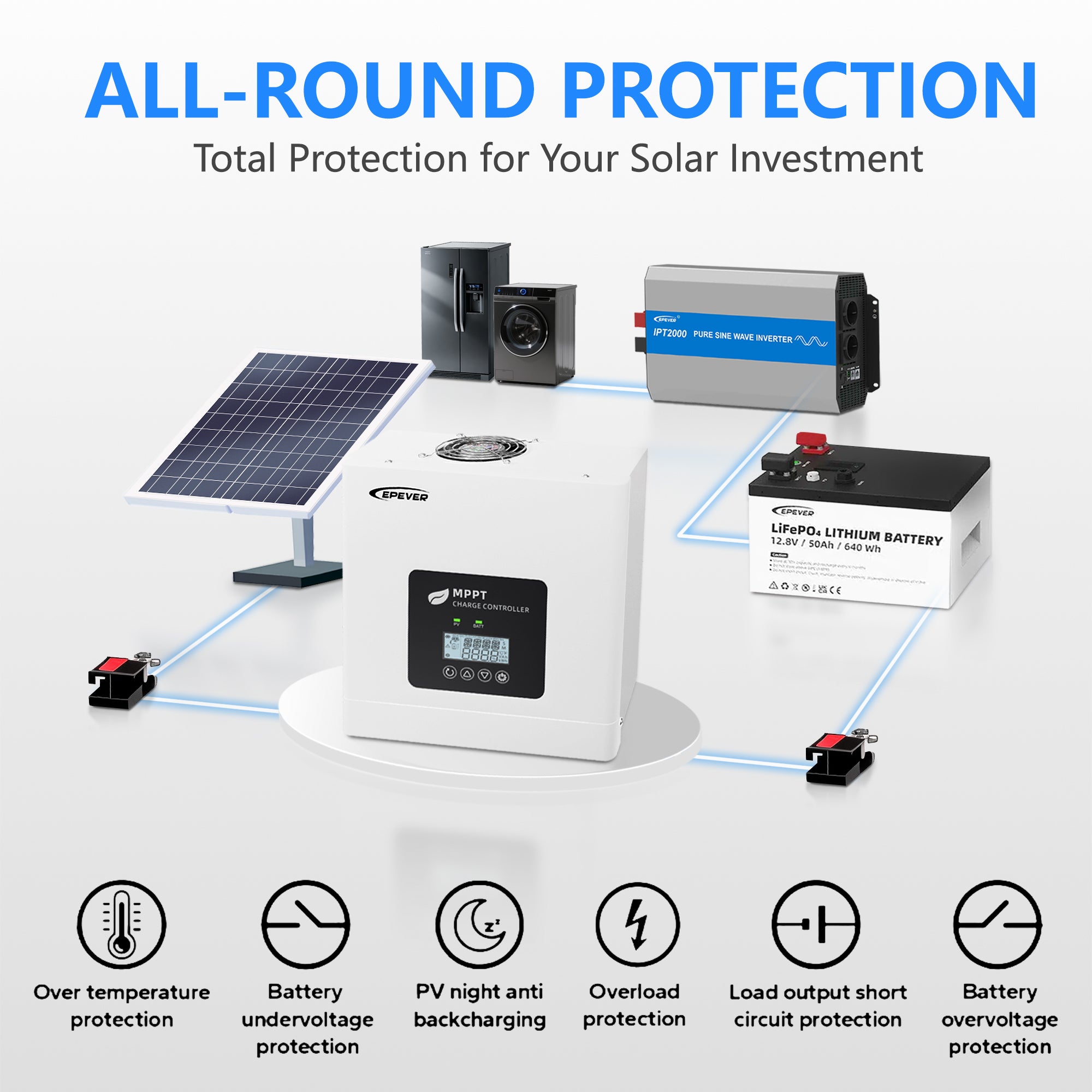

• 5. Robust Build, Comprehensive Protections & Remote Monitoring Built with a two-compartment design for superior dust resistance and efficient heat dissipation, this 100A MPPT Solar Charge Controller ensures reliable performance in diverse environments (IP20 rated). It offers full electronic protections (PV reverse polarity, over-temperature, etc.). An isolated RS-485 port allows for optional WiFi, Bluetooth, or 4G modules, enabling real-time remote monitoring and control via mobile apps for ultimate convenience.

Product description

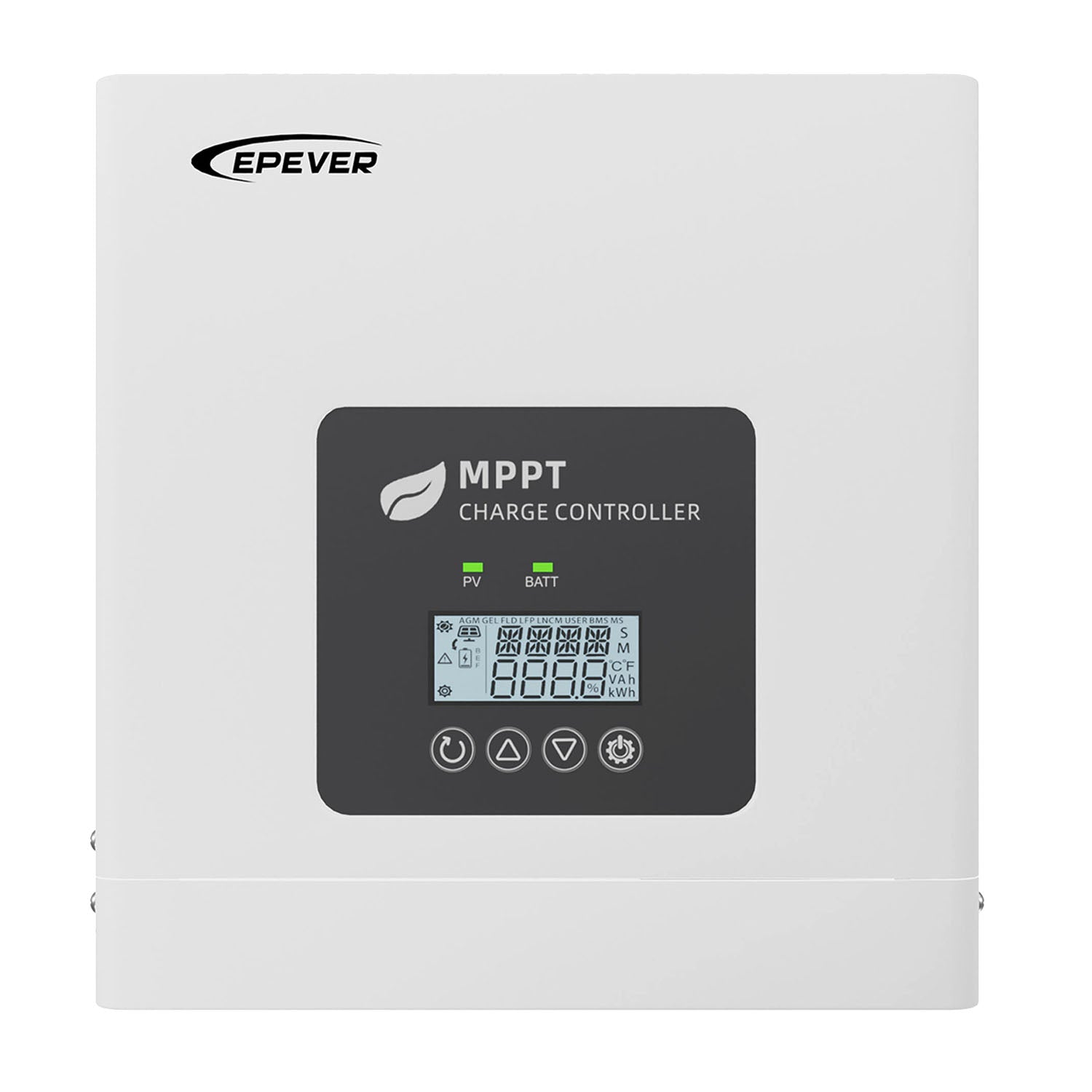

EPEVER 100A 150V MPPT Solar Charge Controller Work with LiFePO4 Battery

Technical Data

Model	TEP10415
Max PV Input (Voc)	150V (@lowest temperature); 135V (@25℃)
MPPT Voltage Range	(Battery voltage plus 2V, and > 20V) to 108V (@25℃)

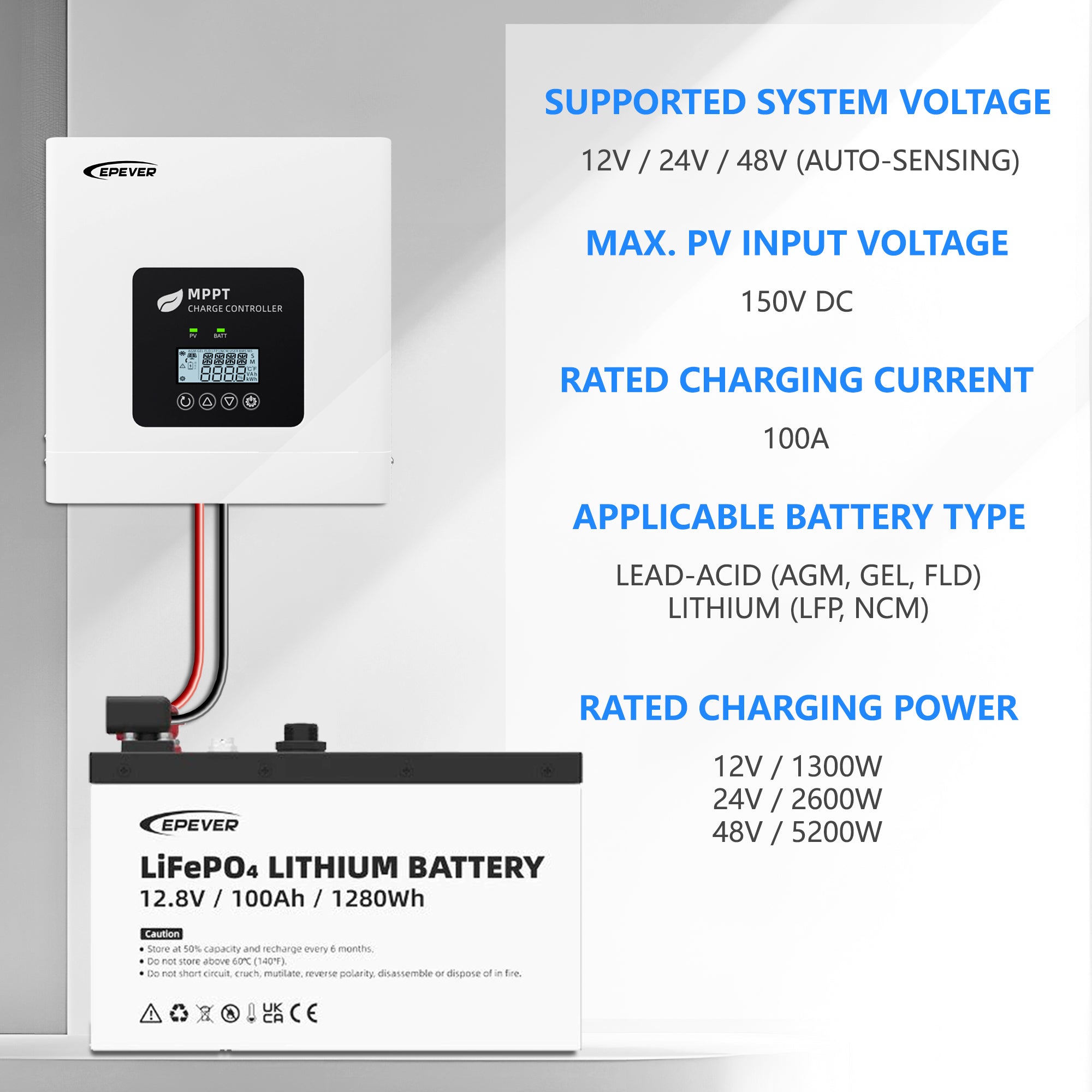

Battery Type	AGM (Default)/GEL/FLD/User
Lithium Battery Type	LFP/NCM/User
Rated Voltage	12/24/48VDC or Auto
Rated Charging Current	100A

Rated Charging Power	1300W/12v battery; 2600W/24v/; 5200W/48V
Grounding Type	Common negative grounding

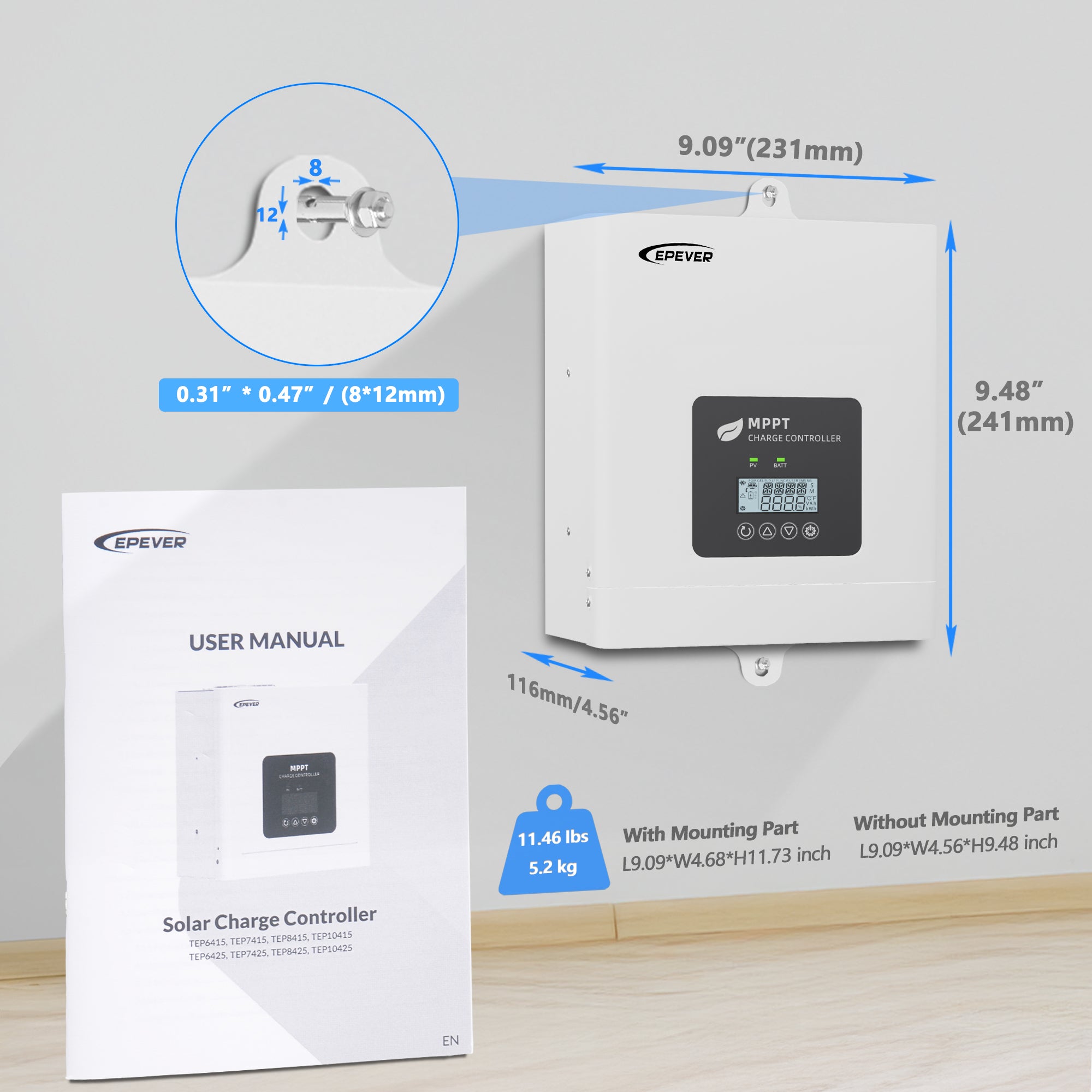

Dimensions (L × W × H)	231mm × 298mm × 119mm
Mounting Hole Size	Φ8mm
Weight	5.2kg
Recommended Cable Size	6AWG/16mm2
