1300W Grid Tie Inverter DC18V to AC110V/220V MPPT Solar Pure Sine Wave Inverter CE
Pickup currently unavailable
Item specifics
Condition: |
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ... Read more
|
Model: |
1300W Solar Inverter |
Current Type: | AC/DC | Featured Refinements: | Grid Tie Inverter |
System Configuration: | Grid-Tie | DC Input Voltage: | 10.8-30VDC |
Power Source: | Solar | Voltage Input: | 18V |
Protection Properties: | Anti-Island Protection, Black Current Protection, Discharge Protection, Lightning Protection, Low Voltage Protection, Open Circuit Protection, Overcharge Protection, Overcurrent Protection, Overload Protection, Overspeed Protection | Voltage Output: | 110V/220V |
Power: | 1300W | Type: | Grid Tie Inverter |
Charging Mode: | MPPT (Maximum Power Point Tracking) | Color: |
Silver |
Frequency: | 50Hz/60Hz(Auto control) | MPN: |
GTI1300W1218 |
Solar Panel: | 18V 36cells panel | Recommended Environment: | Indoor/Outdoor |
Function: | With MPPT Function | Brand: |
SolarEpic |
Bundle Listing: | Yes | Application: | Home/Garden |
Certification: | CE ROHS | Inverter Technology: | Microinverter |
Energy Type: | Solar | Country/Region of Manufacture: | China |
Voltage: | 18V | Wattage: | 1300W |
1300W Grid tie inverter , MPPT Pure Sine Wave Inverter
DC10.8-30V to AC 110V or 220V Output.
Use for 18V ,36cells Solar Panel.
Please be noted, This grid tie inverter cannot be used as off grid/stand alone solar system.
The output need to be connected to the grid power. Can not supply power directly to the AC loads.

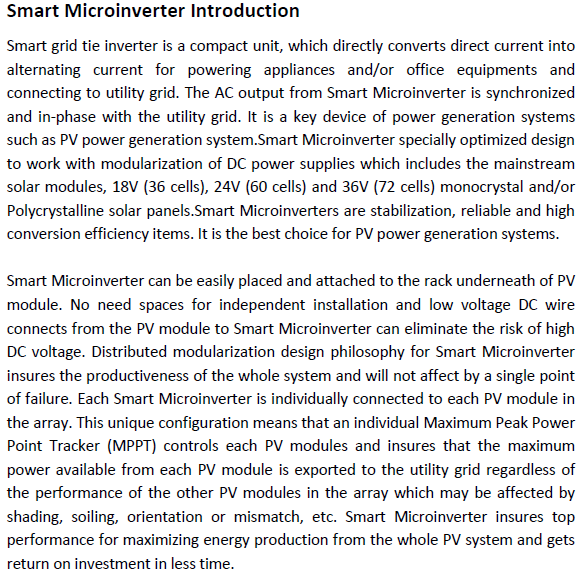

Introduction:
Grid tie inverter is a device which directly converts direct current into alternating current which
sine wave, frequency and phase are same as power grid and then feed into utility grid. It is a key
device of power generation systems such as PV power generation system.Smart Microinverter specially optimized design to work with modularization of DC power supplies which includes the mainstream solar modules,18V (36 cells) monocrystal and/or Polycrystalline solar panels,.
Smart Microinverters are stabilization, reliable and high conversion efficiency items. It is best choice for PV
power generation systems.
Smart Microinverter can be easily placed and attached to the rack underneath of PV module. No
need spaces for independent installation and low voltage DC wire connects from the PV module to
Smart Microinverter can eliminate the risk of high DC voltage. Distributed modularization design
philosophy for Smart Microinverterl insures the productiveness of the whole system and will not
affect by a single point of failure. Each Smart Microinverter is individually connected to one PV
module in the array. Each PV module has the individual Maximum Peak Power Point Tracker
(MPPT) control and insures the maximum power is exported to the utility grid regardless of the
performance of the other PV modules in the array. When PV modules in the array under non-ideal
conditions in practical applications such as PV modules are affected by shading, soiling,
orientation, or mismatch, Smart Microinverter insures top performance for maximizes energy
production from the whole PV system and gets return on investment in less time.
Advantages of Smart Microinverter
- Unique circuit design, choice of import industrial electronic components, higher efficiency, more
stable performance.
- Creative MPPT technology, efficiency more than 99%, faster and more sensitive reaction, more
reliable.
- Parallel type design for DC input and modularization design for inverter, small volume, distributed
installation, easy for system configuration, flexible for combination, strong expansibility of system.
- Adopting high-frequency isolation transformer type, high efficiency, and high security.
- Perfect electrical protection function.
- Aluminum alloy housing, not rust, heat-resisting and cold-resistant as well as anti-corrosion.
- Getting electronic circuit design, appearance design and other core technology patents.
Technical Parameters:
Rated Power |
1300Watt |
Solar Panels |
36cells-Vmp:18-21V:Voc:20-24V |
DC Input Range |
10.8-30VDC |
MPPT Voltage |
15-22VDC |
DC MAX. Current |
85A |
AC Output |
120VAC(90-140VAC) or 230VAC(190-260VAC) |
Frequency |
50Hz/60Hz(Auto control) |
Power Factor |
>98% |
THD |
<5% |
Phase Shift |
<2% |
Efficiency |
120VAC(90-140VAC) Version |
Peak Efficiency |
85 |
Stable Efficiency |
83 |
Efficiency |
230VAC(190-260VAC) Version |
Peak Efficiency |
88 |
Stable Efficiency |
83 |
Protection |
Islanding; Short-circuit; Low Voltage; Over Voltage; Over temperature Protection |
Working Temperature |
‘-20℃-65℃ |
Working Humidity |
0%~90%RH non-condensing |
Waterproof |
Indoor design |
Show |
Luminous Diode(LED) |
Cooling |
Fan |
Stand-by Power |
<1W |
EMC |
EN61000-6-3:2007 EN61000-6-1:2007 |
Grid Disturbance |
EN 50178+EN 62109-1+VDE0126-1-12 |
Grid Detection |
DIN VDE 1026 |
Warranty
1 Years Warranty
What's In Box
- 1 x Solar Inverter
- 1 x User's Manaul
- 1 x AC Cord
