• 【High PV Input Power】This 60 amp MPPT Solar Panel Charger works with 840W Solar Panel on 12V Battery System and 1680W on 24V Battery.
  • 【Compatible with a variety of batteries】Negative grounding design, four load control modes, supports lead-acid and lithium batteries.
  • 【Powerful electronic protections】Eight electronic protections, including reverse polarity protection(for battery and array), solar short circuit protection, over-temperature protection, load short circuit protection, load over-current protection, heat sink temperature limit protection, over-volt / low-volt protection and battery shedding protection.

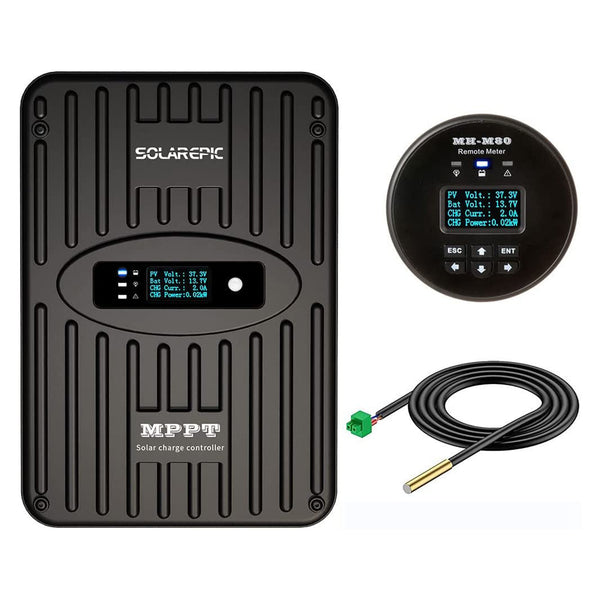

  • 【OLED screen and MH-M80 Meter】The controller has a 1.3 inches OLED screen and a function button. MH-M80 Meter was attached, which can display system operating information and error indications. In addition to that, 3 status LEDs provide system status at a glance. The meter can easily set the parameters of the controller.
  • 【4-stage battery charging】4-stage battery charging algorithm for rapid, efficient, and safe battery charging. The maximal wire size of the controller is 3AWG(25mm2).




Product Description

Technical Data

60A 150V MPPT Solar Charge Controller Nominal System Voltage: 12V, 24V

Rated Charge Current: 60A

Rated Load Current: 30A

Max. PV Open Circuit Voltage: 150V

Max. PV Input Power: 840W (12V battery) / 1680W (24V battery)

Max. Wire Size: 25mm2 / 3AWG

1

Data & Communications

Communication Port Dual RJ45
Communication Protocols Private protocol and MODBUS
PC Software SolarMate
Meter MH-M80 / MH-S80
Dry Contact Via RJ45 port
2



  1. Charging status / Load output status / Error LED
  2. Function button
  3. Digital OLED display
  4. Temperature sensor terminals
  5. Dual RJ45 serial communication ports
  6. Input and output terminals (PV+/PV-/BAT+/BAT-/LOAD+/LOAD-)
  7. Dedicated for grounding wire
  8. Reverse fixing hole
  9. Mounting holes for positively fixed fittings
  10. Terminal cover plate
