LCD display,remote meter

Optional remote meter to our gird tie inverter

Automatic identify the inverter, and display relevant parameter data and system working status

Screen data : ac voltage,current and frequency,generating capacity,power factor

Have EU,AU,US,UK plug,choose the one as you want,thanks.

Note : This inverter do not have the monitoring function.

700W waterproof grid tie inverter,pure sine wave inverter.

DC20V-50V to AC110V or 220V,50Hz/60Hz auto.

Waterproof IP65.Use for 24v/36v solar panel.

System Function

◆ 6-grade power search---In overcast weather, the PV Panel’s output current is extremely tiny, then inverter will automatic open 6-grade power search function,and keep outputing efficent and steady during the low power .

◆ Wide voltage input(22-50VDC)---

1. DC voltage input:22~50VDC; 2. Second level power variable voltage conversion.

◆ High-frequency two-way and one-way grid function---

1. High frequency direct modulation, AC half wave synthesis;
2. Two-way grid means: Load consume directly. And can reverse AC current transmission.

◆ Kinds of frequency output function---

1. It can apply to 50Hz and 60Hz frequency of AC; 2. Frequency range: 45Hz ~ 64Hz;

◆Directly connected to the solar panels (do not need to connect the battery)

◆ AC 0 angle with high precision auto-detection---

High-precision analysing the AC phase angle .The phase shift rate is less than 1%, thus achieve high-precision with phase modulation AC output together.1. AC phase shift: < 1%; 2. Over-zero protection: 0.2 VAC; 3. AC switching: 50Hz / 60Hz.

◆ Synchronous High-frequency Modulation

1. Modulation synthesis: half wave and full-bridge modulation synthesis (100Hz / 120Hz) ;
2. Synthetic way: MOSFET full-bridge; 3. High frequency: 50KHz.

◆ Pure Sine Wave Output---Use SPWM directly to make pure sine wave output.

1. Output waveform: Adopt complementary PWM to push-pull pure sine wave;
2. Generate means: enhancement-mode SPWM.

◆ Power Automatically Locked (APL)---

automatically powers locked in maximum power point, made output more stable.

◆ Constant Current, Constant Power---

constant current and output power, without any overload, over-current phenomenon.

◆ Exactly and timely automatic Island Effect Protection

◆ High-Frequency High Conversion Rate---

Adapt high frequency converter, the output more efficient.

◆ Maximum Power Point Tracking (MPPT)---

high-precision (MPPT) operation power, automatic and immediate adjust the solar panels output power at the maximum output point,made the inverter discharge to power grid with the highest efficiency.

◆ Stack using--- Such as: 4 micro inverter of 260W stacking can achieve 1040W. the number of the stacking is unlimited.

◆ DC input---Input voltage range: 22V to 50V,PV Panel: Recommend using the power more than 30W and the standard voltage of 36V PV panels.Suggestion making the PV in parallel.

◆ AC output---220VAC: 180V - 262V, 50HZ; 110V AC: 80V - 160V,60HZ.

Package:

1.One user manual;

2.One 700W inverter;

3.One AC Cable;

Note : This inverter do not have the monitoring function.

1200W waterproof grid tie inverter,pure sine wave inverter.

DC22V-50V to AC110V or 220V, 50Hz/60Hz auto.

Waterproof IP65.

Color : silver,golden,blue.

LCD display,remote meter

Automatic identify the inverter, and display relevant parameter data and system working status

Screen data : ac voltage,current and frequency,generating capacity,power factor

AC cord : EU,UK,US,AU plug,will send the plug as the country need.

System Function

◆ 6-grade power search---In overcast weather, the PV Panel’s output current is extremely tiny, then inverter will automatic open 6-grade power search function,and keep outputing efficent and steady during the low power .

◆ Wide voltage input(22-50VDC)---

1. DC voltage input:22~50VDC; 2. Second level power variable voltage conversion.

◆ High-frequency two-way and one-way grid function---

1. High frequency direct modulation, AC half wave synthesis;
2. Two-way grid means: Load consume directly. And can reverse AC current transmission.

◆ Kinds of frequency output function---

1. It can apply to 50Hz and 60Hz frequency of AC; 2. Frequency range: 45Hz ~ 64Hz;

◆Directly connected to the solar panels (do not need to connect the battery)

◆ AC 0 angle with high precision auto-detection---

High-precision analysing the AC phase angle .The phase shift rate is less than 1%, thus achieve high-precision with phase modulation AC output together.1. AC phase shift: < 1%; 2. Over-zero protection: 0.2 VAC; 3. AC switching: 50Hz / 60Hz.

◆ Synchronous High-frequency Modulation

1. Modulation synthesis: half wave and full-bridge modulation synthesis (100Hz / 120Hz) ;
2. Synthetic way: MOSFET full-bridge; 3. High frequency: 50KHz.

◆ Pure Sine Wave Output---Use SPWM directly to make pure sine wave output.

1. Output waveform: Adopt complementary PWM to push-pull pure sine wave;
2. Generate means: enhancement-mode SPWM.

◆ Power Automatically Locked (APL)---

automatically powers locked in maximum power point, made output more stable.

◆ Constant Current, Constant Power---

constant current and output power, without any overload, over-current phenomenon.

◆ Exactly and timely automatic Island Effect Protection

◆ High-Frequency High Conversion Rate---

Adapt high frequency converter, the output more efficient.

◆ Maximum Power Point Tracking (MPPT)---

high-precision (MPPT) operation power, automatic and immediate adjust the solar panels output power at the maximum output point,made the inverter discharge to power grid with the highest efficiency.

◆ Stack using--- Such as: 4 micro inverter of 260W stacking can achieve 1040W. the number of the stacking is unlimited.

◆ DC input---Input voltage range: 22V to 50V,PV Panel: Recommend using the power more than 30W and the standard voltage of 36V PV panels.Suggestion making the PV in parallel.

◆ AC output---220VAC: 180V - 262V, 50HZ; 110V AC: 80V - 160V,60HZ.

Notes:

★Please connect the inverter following the operation instruction show above. If have any question please contact with relative persons.

★Non-professionals do not disassemble.Only qualified personnel may repair this product.

★Please install inverter in the low humidity and well ventilated place to avoid the inverter over-heating,and clear around the inflammable and explosive materials.

★When using this product, avoid children touching,playing, to avoid electric shock.

★Connected solar panels, battery or wind generators DC input DC power supply cable.

LED Display:

1.Red light 3 second---Red LED light 3 second while device starts , then in working condition;

2.Green flash fast---MPPT searching;

3.Green flash slow---MPPT + searching;

4. Red flash slow---MPPT - searching;

5.Green lights on 3s and off 0.5s---MPPT locked;

6.Red light steady---

1. Islanding protection;

b.Over-temperature protection;

c.Over / low AC voltage protection;

1. Over / low DC voltage protection; e.Fault

Remarks :

LED flashing in the process of being working condition : inverters connected to AC & DC sides→Red LED light 3 second→Green LED flash fast(MPPT searching)→Green LED flash slow(MPPT + searching) / Red LED flash slow (MPPT - searching) / reen LED lights on 3s and off 0.5s (MPPT locked) .

Package:

1.One user manual;

2.One 1200W inverter;

3.One AC Cable;

4.One LCD display meter with AC plug.

Color : Sky Bule

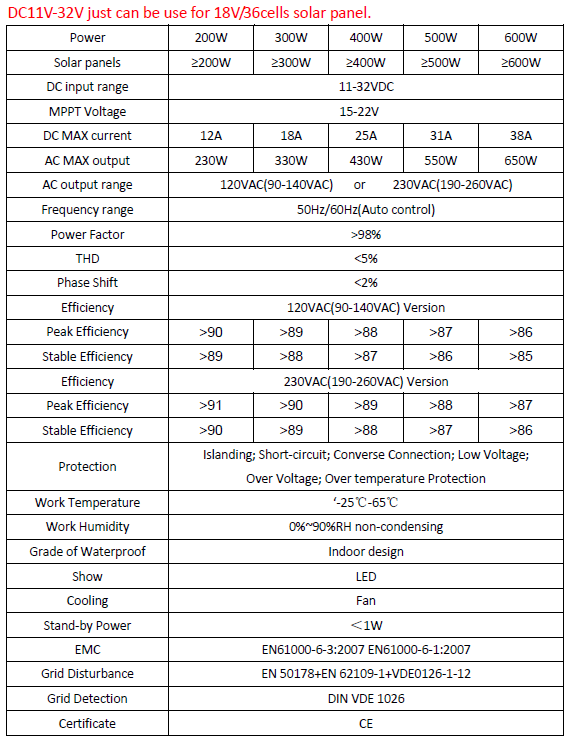

600W/500W/400W/300W/200W

Grid tie inverter,pure sine wave inverter.

DC11V-32V to AC110V or 220V,50Hz/60Hz AUTO.

For 18V/36cells Solar Panel.

With MPPT Functions.

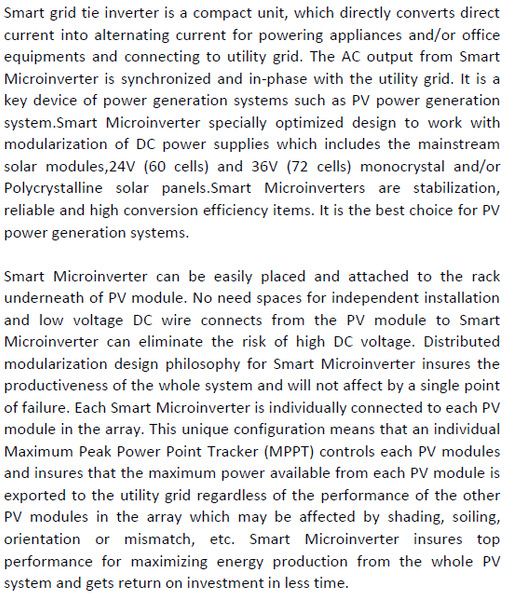

Smart Microinverter Introduction

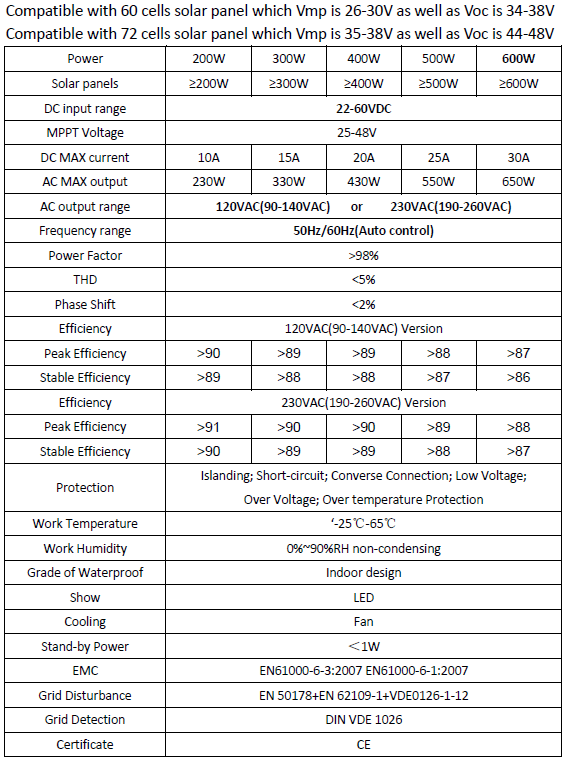

Technical Parameters:

1000W Grid Tie Inverter,Pure sine wave inverter,Sky Blue Color.

Please be noted, This grid tie inverter cannot be used as off grid/stand alone solar system.

The output need to be connected to the grid power. Can not supply power directly to the AC loads.

Smart Microinverter Introduction

Technical Parameters:

What's In Box
